Asphalt plant parts play an important role in keeping hot mix asphalt production running efficiently. From conveyors and dryers to mixing, storage, and emission-control systems, each component supports a specific part of the production process. Understanding how these parts work together can help operators recognize wear, plan maintenance, and make better decisions about repair or replacement.
Three Main Types of Plants
Asphalt production facilities generally fall into three categories: batch plants, parallel flow drum mix plants, and counter flow drum mix plants. Each produces hot mix asphalt, but the way materials move through the asphalt plant parts differs.
Batch Plants
Batch plants produce asphalt in individual batches, allowing operators to adjust the mix design between production runs. Aggregates move from cold-feed bins into a dryer, where moisture is removed. The heated material is then screened and separated by size before being weighed.
From there, aggregates are combined with liquid asphalt binder and any required filler materials in the mixing tower. Because ingredients are measured for each batch, this setup provides control over the final mixture.
Common asphalt plant equipment in a batch system includes cold-feed bins, dryers, screens, weighing systems, mixing towers, storage silos, and dust-collection equipment.
Parallel Flow Drum Mix Plants
Parallel flow drum mix plants use a continuous production process rather than producing individual batches. Aggregates enter a rotating drum and travel in the same direction as the heated gases from the burner.
As the material moves through the drum, it is dried, heated, and combined with liquid asphalt. The finished mixture then moves to storage or loading equipment.
This continuous process can support high production volumes while using fewer separate processing stages than a traditional batch configuration.
Counter Flow Drum Mix Plants
Counter flow systems also produce asphalt continuously, but aggregates and heated gases move in opposite directions. The aggregate travels toward the burner while hot gases move toward the incoming material.
Mixing occurs separately from the burner flame, helping protect the asphalt binder from direct exposure to high temperatures. This configuration can provide greater control over heating and emissions while maintaining continuous production.
Essential Asphalt Plant Parts and Equipment
Regardless of plant design, several components work together to move, heat, mix, and store materials. Some of the most common asphalt plant parts and equipment include:
- Cold-feed bins: Store and meter aggregates entering production.
- Dryers and drums: Remove moisture and heat aggregate to the required temperature.
- Conveyors: Move aggregate and finished materials between processing stages.
- Mixing equipment: Combines heated aggregate with liquid asphalt and other materials.
- Storage silos: Hold finished hot mix before loading and transportation.

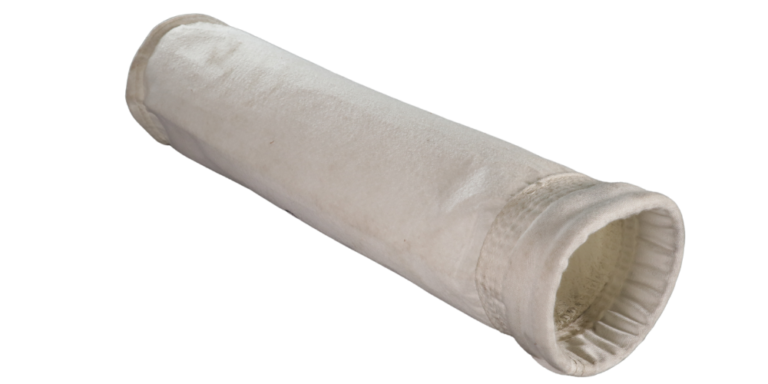

- Dust collection systems: Capture particulate matter generated during production.
Other wear components, including flights, chains, sprockets, reducers, bearings, and conveyor components, are also important to reliable operation. Outlook Enterprises supplies a variety of asphalt plant parts for equipment from major manufacturers.
Knowing When Equipment Needs Attention
Because asphalt plant equipment operates under heat, friction, heavy loads, and abrasive conditions, regular inspection is important. Wear can develop gradually, making preventive maintenance valuable for identifying problems before they interrupt production.
Operators should monitor dryers for wear and alignment issues, inspect conveyors and their chains and sprockets, and keep dust-collection systems functioning properly. Unusual noise, vibration, inconsistent material flow, or visible deterioration can indicate that asphalt plant parts need adjustment, repair, or replacement.
Keeping commonly used wear components available can also help reduce the time required to address an unexpected failure.
Keep Production Moving
Reliable equipment depends on more than one major machine. Every chain, sprocket, flight, reducer, bearing, and conveyor component contributes to the production process. Maintaining these components and replacing worn asphalt plant parts at the right time can help support consistent operation and reduce avoidable downtime.
At Outlook Enterprises, we supply equipment and replacement components for batch and drum mix facilities, including sprockets and chains used by major manufacturers. With access to both common wear items and harder-to-find components, we can help facilities find the parts they need to keep production moving.
